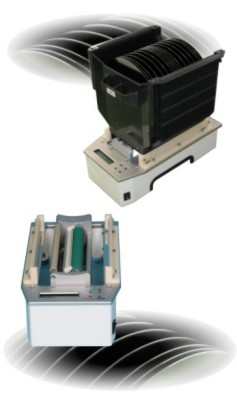

Automatic Notchfinder | NFXXX-Series
The tabletop automatic Notchfinder is designed to align a waferbatch.
The processed wafersurface will not touch the cassette during the alignment.
8 angles are stored and one is free programmable.
The integrated inspection mode allows the checking of the waferedges.
Models available for 100, 125, 150 and 200mm wafers.
- Tabletop System
- Very compact footprint 315 x 167mm
- Precise alignment +/- 1°
- One free programmable angle 0-360°
- ESD safe
- Integrated uController
- LCD Display
- Triggeroutput for RFID etc..
- RS232 Interface for automation
- Powersupply 110-230 VAC / 50-60 Hz
